Faster Heat, Cleaner Burn: The EnergyLogic Advantage
How is our waste oil heater superior to the competition’s? It starts with our patented waste oil burner which produces double the heat-rise to heat your facility faster. Our hot flame offers the additional benefit of increasing reliability while reducing maintenance time by destroying more of the impurities often found in used oil. Our EnergyLogic waste oil furnaces and boilers are easy to clean and maintain, so you can spend more time with customers. On top of that, waste oil furnace emissions are far less than any standard heater, and virtually odor-free.
Our Technology

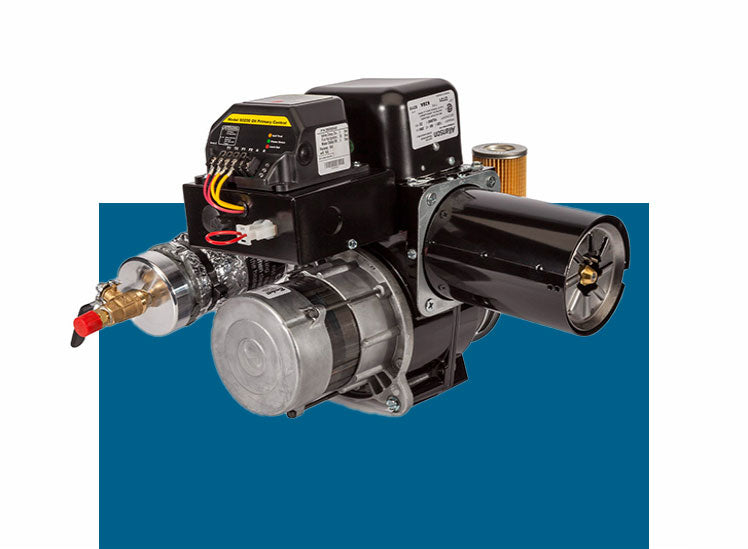

In waste oil heating, nothing is more important than generating the hottest, cleanest-burning flame. That’s why EnergyLogic only uses the best burner in our waste oil burners. Our American-made Beckett chassis delivers near complete combustion, resulting in the highest heat output and the least ash accumulation.
CLEAN LESS.
Our superior flame incinerates more impurities that cause ash, resulting in the longest cleaning interval in the industry.
ON-BOARD AIR COMPRESSOR.
Shop air is for work, not heat. Our burner’s pre-installed air-compressor is small, quiet and delivers perfect airflow for waste oil heating.
BURN MORE FUELS.
Use the widest range of used and waste oils—No.2 to 90W, including synthetics—with no manual adjustments.
MADE IN THE USA
Our burner is produced in Ohio by Beckett, a family-owned and run manufacturer recognized as the leader in fuel combustion technology since 1937.
DOUBLE THE HEAT RISE
Our Beckett burner flame is 1,500+ degrees, with heat output 120 degrees above room temp--double the competitions’.

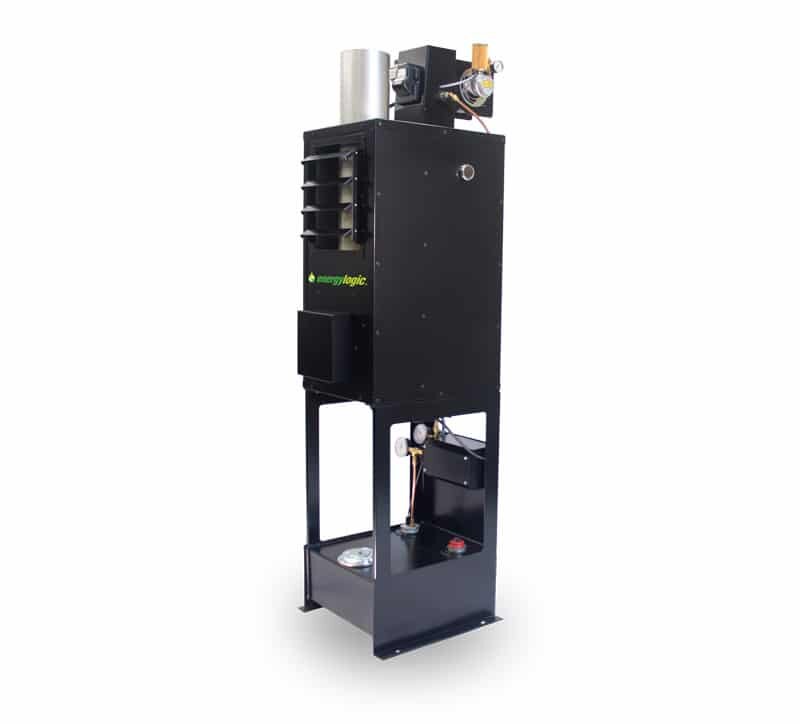

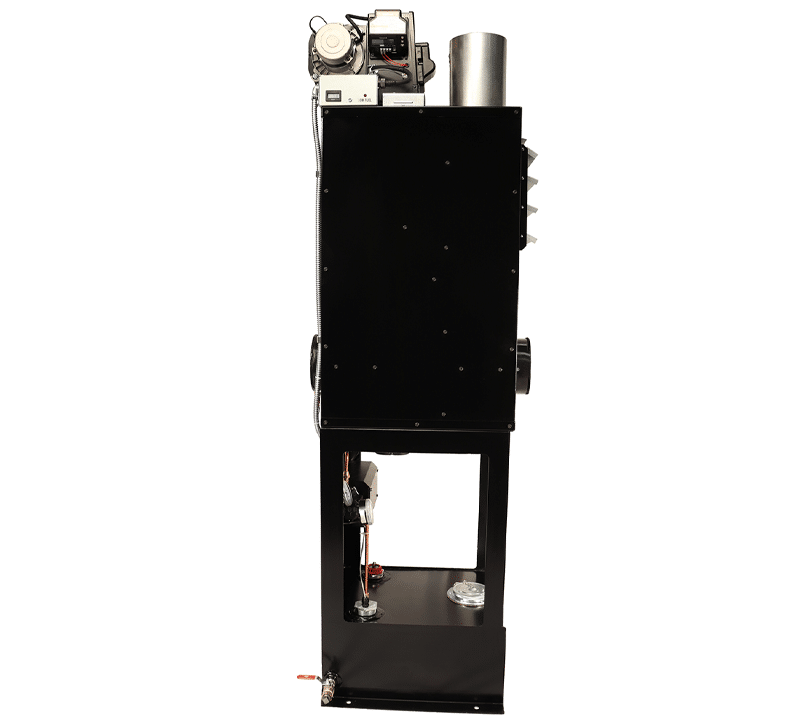

Energylogic EL75H Waste Oil Furnace
$4,199.00 USD
Energylogic EL75H Waste Oil Furnace
$4,199.00 USD
Introducing the all new Energylogic EL75H
- Heats up to 1,750 square feet approximately one to four service bays
- BTU Inuput: 75,000 BTU (21.98 kW) per hour
- Fuel Flow Rate: 0.54 gallons/hour (2.0 liters/hour)
- Heat Rise Over Input Air: 100-120 F (55.6-66.7 C)
- Airflow: 500 com
- Exhaust Flue Diameter: 6”
- Dimensions: 75”H x 21”W x 26”L
Furnaces

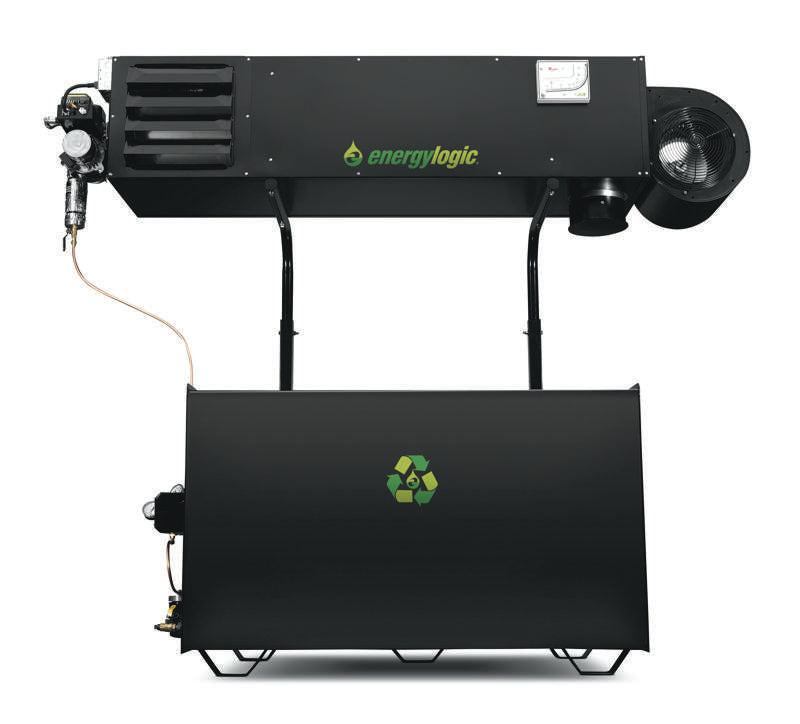

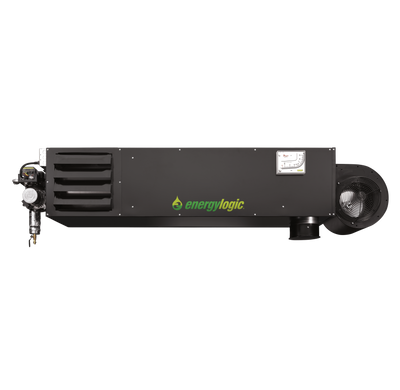

EL140H (140,000 BTU)
- Heats up to 3,500 square feetapproximately one to four service bays
- BTU Input: 140,000 BTU (41.6 kW) per hour
- Fuel Flow Rate: 1.0 gallons/hour (3.78 liters/hour)
- Heat Rise Over Input Air: 100-120º F (56-67º C)
- Airflow: 1000 cfm
- Exhaust flue diameter: 6” or 8”
- Dimensions: 18”H x 18”W x 92”L
- Weight: 295 lbs.
- Tank sold separately unless purchasing complete package.

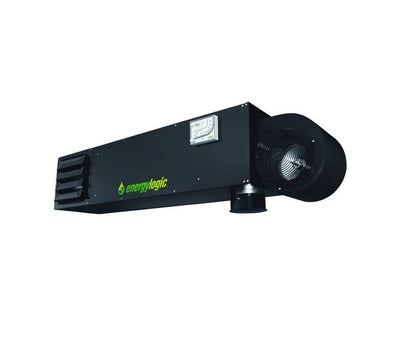

EL200H (200,000 BTU)
- Heats up to 5,000 square approximately four to eight service bays
- BTU Input: 200,000 BTU (58.3 kW) per hour
- Fuel Flow Rate: 1.4 gallons/hour (5.3 liters/hour)
- Heat Rise Over Input Air: 100-120ºF (56-67º C)
- Airflow: 1500 cfm
- Exhaust flue diameter: 6” or 8”
- Dimensions: 18”H x 18”W x 103”L
- Weight: 315 lbs.
- Tank sold separately unless purchasing complete package.

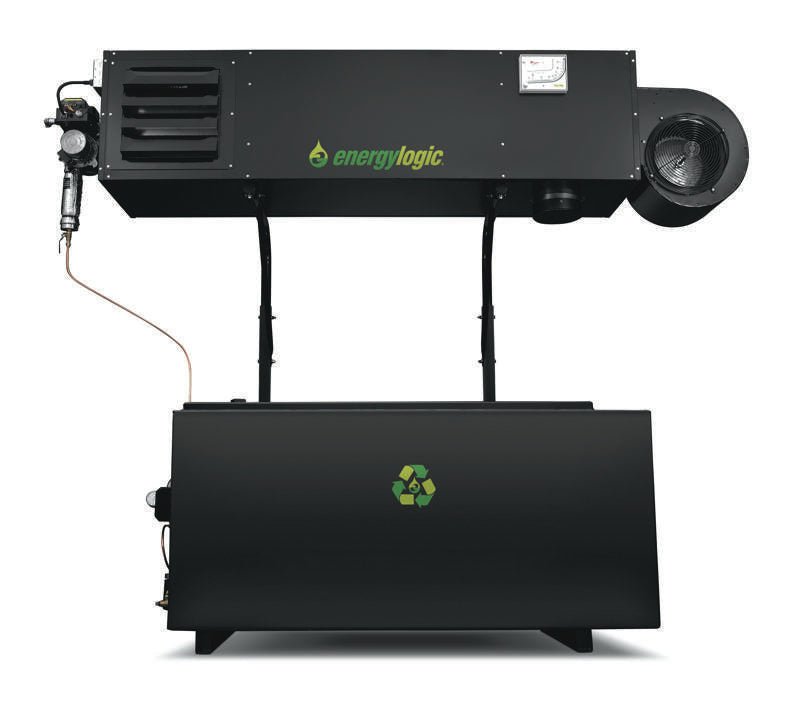

EL350H (350,000 BTU)
- Heats up to 9,000 square feet approximately eight or more service bays
- BTU Input: 350,000 BTU (102 kW) per hour
- Fuel Flow Rate: 2.5 gallons/hour (9.4 liters/hour)
- Heat Rise Over Input Air: 100-120º F (37.8-48.9° C)
- Airflow: 2600 cfm
- Exhaust flue diameter: 8”
- Dimensions: 22”H x 22” W x 117”L
- Weight: 415 lbs.
- Tank sold separately unless purchasing complete package.
Boilers

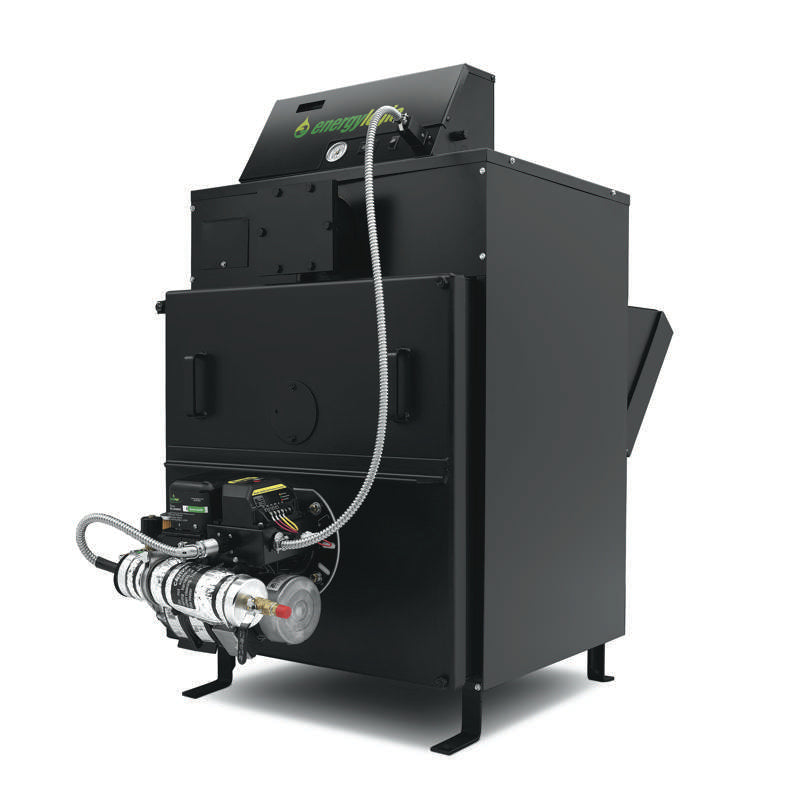

EL200B (200,000 BTU)
- BTU Input: 200,000 BTU (58.3 kW) per hour
- Fuel Flow Rate: 1.4 gallons/hour (5.3 liters/hour)
- Water Output Temp: 230º F (110º C)
- Capacity: 30 gallons (114 liters)
- Exhaust flue diameter: 8”
- Dimensions: 45”H x 32”W x 50”D
- Weight: 790 lbs.
- Tank sold separately
EL375B (375,000 BTU)
- BTU Input: 375,000 BTU (110 kW) per hour
- Fuel Flow Rate: 2.7 gallons/hour (10.2 liters/hour)
- Water Output Temp: 230º F (110º C)
- Capacity: 43 gallons (162.75 liters)
- Exhaust flue diameter: 8”
- Dimensions: 45”H x 28”W x 60”D
- Weight: 1042 lbs.
- Tank sold separately

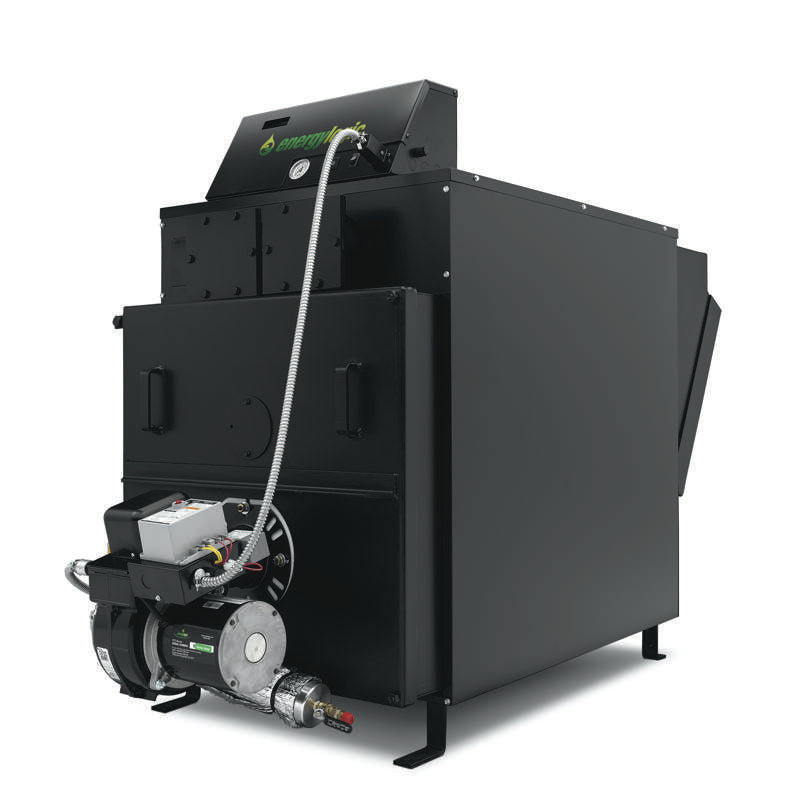

EL500B (500,000 BTU)
- BTU Input: 499,000 BTU (146 kW) per hour
- Fuel Flow Rate: 3.6 gallons/hour (13.6 liters/hour)
- Water Output Temp: 230º F (110º C)
- Capacity: 52 gallons (200 liters)
- Exhaust flue diameter: 10”
- Dimensions: 45”H x 32”W x 68”D
- Weight: 1160 lbs.
- Tank sold separately
Request a Quote
Fill out the form below to get a quote on the Energylogic furnaces or boilers you are interested in!
Shop Energylogic Parts
Energylogic EL350H Furnace (Only available for purchase in NYS)
$14,259.00
Energylogic EL200H Furnace (Only available for purchase in NYS)
$9,499.00
Energylogic EL140H Furnace (Only available for purchase in NYS)
$8,039.00
Energylogic Air Vane: 20311121
$23.00
Nozzle Block Assembly for EL (No Heaters): 81011109
$199.00
Nozzle Line Assembly (after 4/2025): 81012634
$400.00

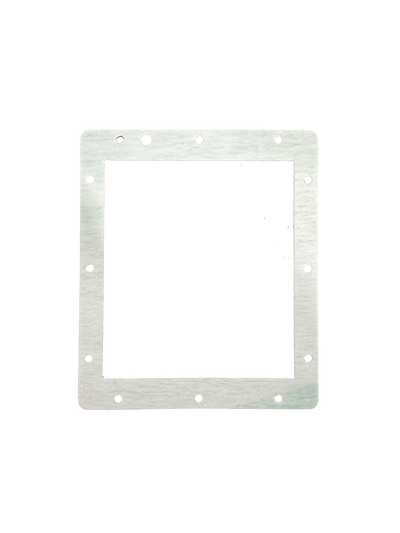

Flat Preheater Gasket for EL Flat Preheaters: 76001184
$19.00
Copper Line - SV-PH for Energylogic: 81012156
$26.00
PTC - Standby PTC for Energylogic: 76001191
$30.00
PTC - Standby PTC for Energylogic: 76001192
$30.00
PTC Run Heater for Energylogic Preheater: 76001194
$37.00
PTC Run Heater for Energylogic Preheater: 76001193
$37.00
Terminal Block Bracket for EL: 81011065
$6.00
Flat Pre-heater for Energylogic 500B with Retrofit: 81012165
$1,015.00
Flat Pre-heater for Energylogic 375B with Retrofit: 81012164
$980.00
Flat Pre-heater for Energylogic 200B with Retrofit: 81012163
$870.00
Flat Pre-heater for Energylogic 350H with Retrofit: 81012162
$850.00

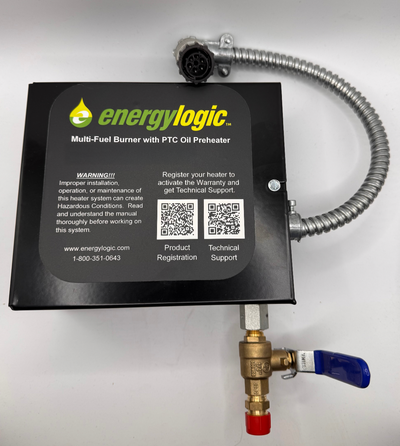

Flat Pre-heater for Energylogic 340H with Retrofit: 81012161
$850.00
Flat Pre-heater for Energylogic 140H with Retrofit: 81012159
$838.00
Fuse for Energylogic Flat Preheater: 81012205
$7.00

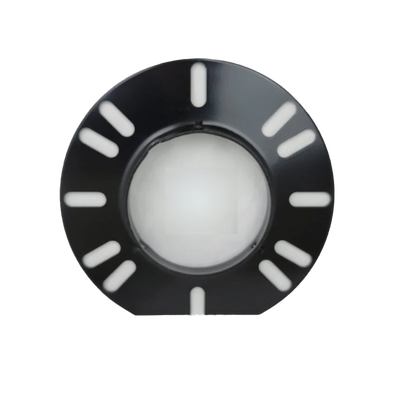

Flange 4" Mounting Kit for Energylogic: 20210120
$25.00
Air Tube Non-Hinged: 20361187
$122.00

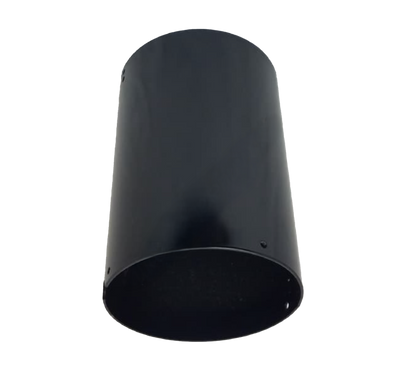

Air Tube Non-Hinged: 20210119
$122.00
Air Tube Hinged (4.3" Diameter) for Energylogic: 04000062
$129.00

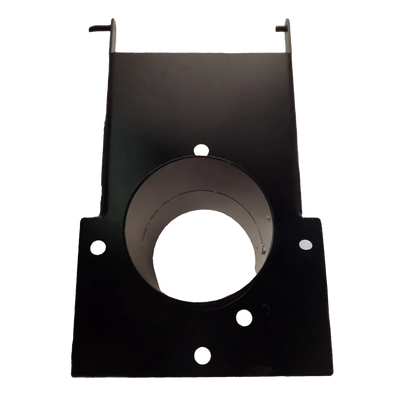

Air Tube Hinged for Energylogic: 20311116
$125.00
Band- Air, Slotted for Energylogic: 06000595
$9.50
Band- Air, SF for Energylogic: 20213133
$22.00

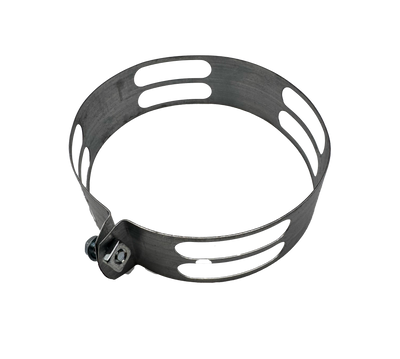

Band- Air, AF for Energylogic: 20213132
$9.00

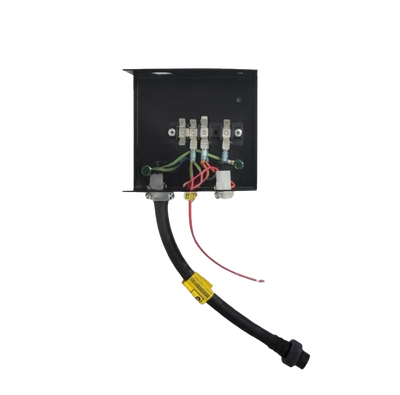

Energylogic OEM Wire Box Base Assembly, Round Plug: 04000107
$137.00
Energylogic OEM Wire Box Base Assembly, Round Plug: 04000106
$130.00

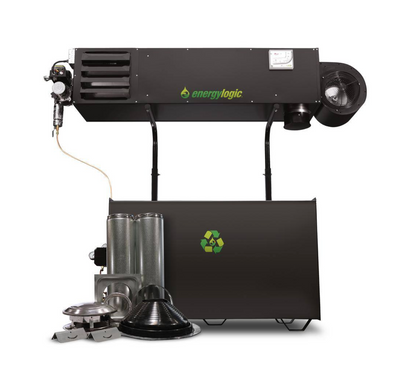

Complete Energylogic EL140H w/ 250 Gallon Tank & Flue Kit (NEW YORK ONLY)
$11,611.00

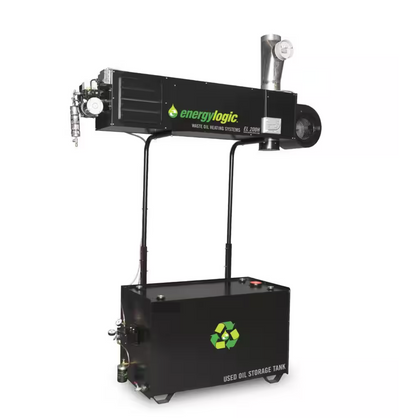

Complete Energylogic EL200H w/ 250 Gallon Tank & Flue Kit (NEW YORK ONLY)
$12,965.00

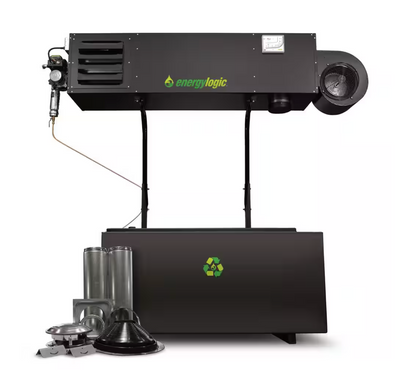

Complete Energylogic EL350H w/ 250 Gallon Tank & Flue Kit (NEW YORK ONLY)
$15,970.00

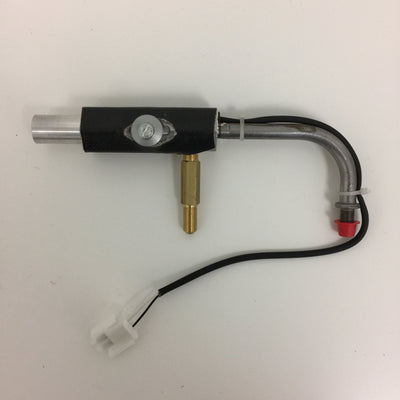

Energylogic Nozzle Block Assembly with PTC, Fittings - Hex : 04000057
$275.00

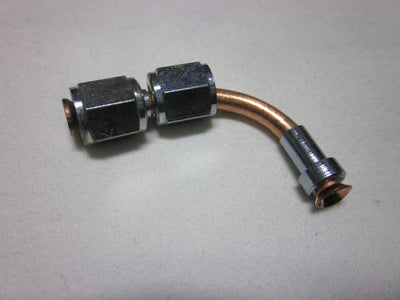

Energylogic Copper Line S-NB: 05000038
$29.00

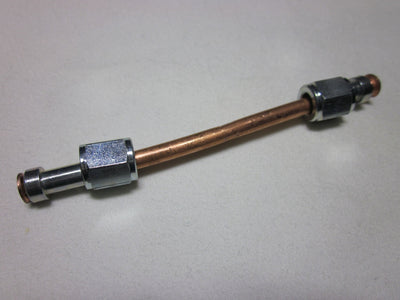

Energylogic Copper Line AC-NB: 20630115
$14.00
Air Compressor Maintenance Kit for Large Compressor EL: 05000096
$238.00
$189.00

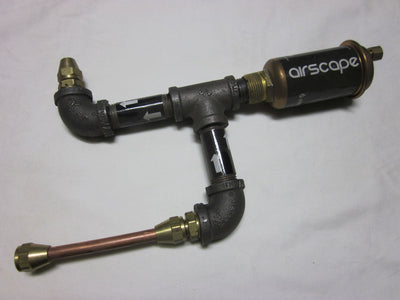

Energylogic Airscape: 04000066
$289.00
Energylogic Copper Line S-NB: 05000039
$29.00
Energylogic Copper Line S-NB: 05000040
$29.00

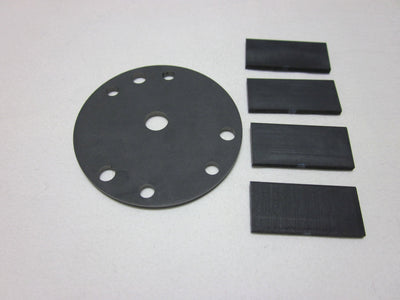

Air Compressor Maintenance Kit for EL- Small: 05000166
$212.00
$189.00
Energylogic Burner Cord w/ Round Plug: 04000112
$119.00

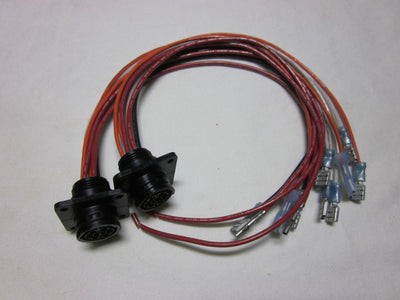

Energylogic Preheater Wiring Pigtail (7 pin): 14010121
$43.00

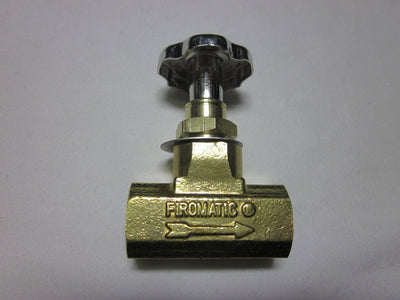

Energylogic Firestop Valve: 20270186
$45.00

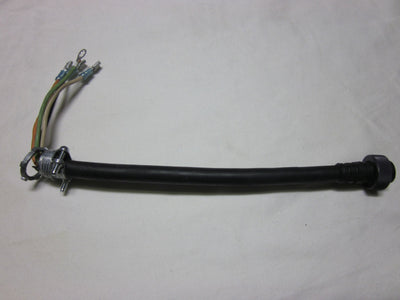

Energylogic Burner Cord with Round Plug: 04000111
$82.00

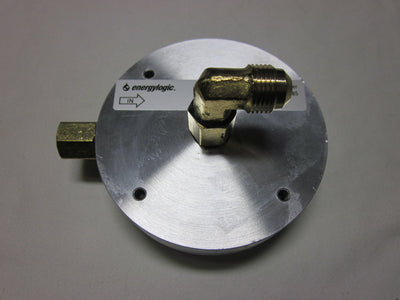

Energylogic Filter Head Assembly: 04000189
$107.00

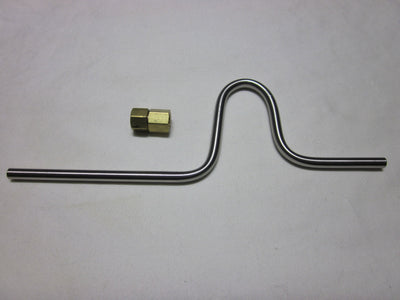

Energylogic Probe- Draft Gauge: 14003110
$39.00

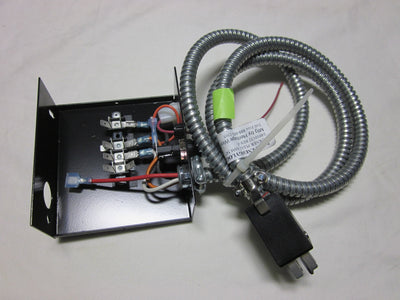

Energylogic Wire Box Base Assembly: 14010109
$225.00

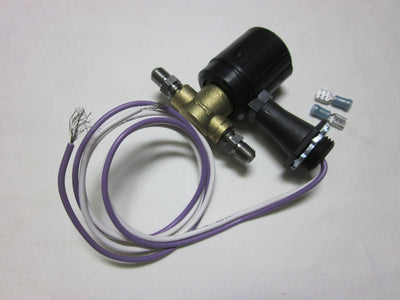

Energylogic Solenoid Valve with Fittings: 14010134
$86.00

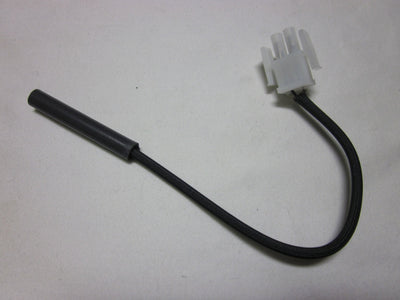

PTC 8.7 mm Assembly Energylogic: 14010125
$53.00
