OVERVIEW

But why choose EnergyLogic? How is our waste oil heater superior to the competition’s? It starts with our patented waste oil burner which produces double the heat-rise to heat your facility faster. Our hot flame offers the additional benefit of increasing reliability while reducing maintenance time by destroying more of the impurities often found in used oil.  Our EnergyLogic waste oil furnaces and boilers are easy to clean and maintain, so you can spend more time with customers. On top of that, waste oil furnace emissions are far less than any standard heater, and virtually odor-free.


Furnaces

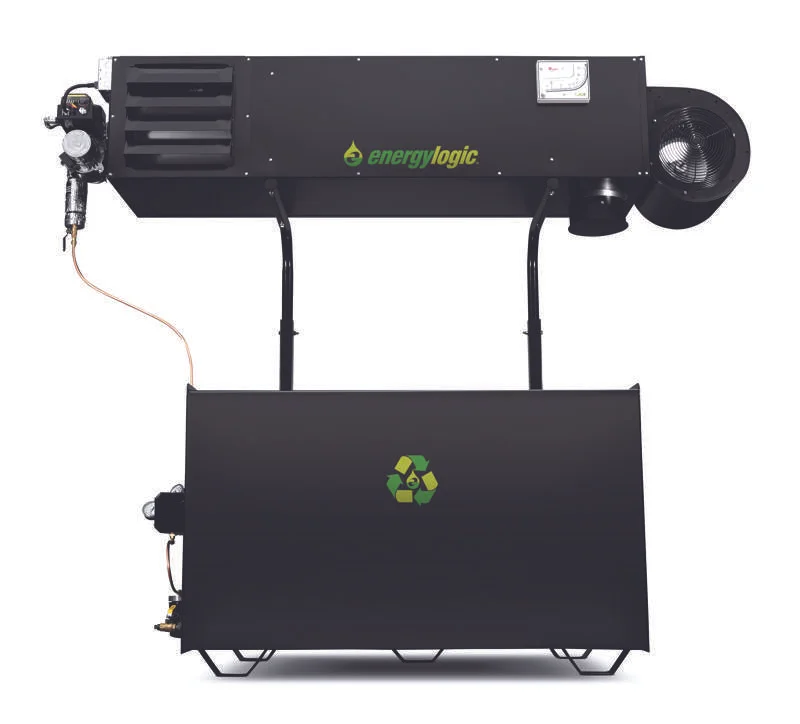

EL140H (140,000 BTU)

  • Heats up to 3,500 square feetapproximately one to four service bays
  • BTU Input: 140,000 BTU (41.6 kW) per hour
  • Fuel Flow Rate: 1.0 gallons/hour (3.78 liters/hour)
  • Heat Rise Over Input Air: 100-120º F (56-67º C)
  • Airflow: 1000 cfm
  • Exhaust flue diameter: 6” or 8”
  • Dimensions: 18”H x 18”W x 92”L
  • Weight: 295 lbs.
  • Tank sold separately

EL200H (200,000 BTU)

  • Heats up to 5,000 square feetapproximately four to eight service bays
  • BTU Input: 200,000 BTU (58.3 kW) per hour
  • Fuel Flow Rate: 1.4 gallons/hour (5.3 liters/hour)
  • Heat Rise Over Input Air: 100-120ºF (56-67º C)
  • Airflow: 1500 cfm
  • Exhaust flue diameter: 6” or 8”
  • Dimensions: 18”H x 18”W x 103”L
  • Weight: 315 lbs.
  • Tank sold separately

EL350H (350,000 BTU)

  • Heats up to 9,000 square feet approximately eight or more service bays
  • BTU Input: 350,000 BTU (102 kW) per hour
  • Fuel Flow Rate: 2.5 gallons/hour (9.4 liters/hour)
  • Heat Rise Over Input Air: 100-120º F (37.8-48.9° C)
  • Airflow: 2600 cfm
  • Exhaust flue diameter: 8”
  • Dimensions: 22”H x 22” W x 117”L
  • Weight: 415 lbs.
  • Tank sold separately.

Boilers


EL375B (375,000 BTU)

  • BTU Input: 375,000 BTU (110 kW) per hour
  • Fuel Flow Rate: 2.7 gallons/hour (10.2 liters/hour)
  • Water Output Temp: 230º F (110º C)
  • Capacity: 43 gallons (162.75 liters)
  • Exhaust flue diameter: 8”
  • Dimensions: 45”H x 28”W x 60”D
  • Weight: 1042 lbs.
  • Tank sold separately
EL200B (200,000 BTU)

EL500B (500,000 BTU)

  • BTU Input: 499,000 BTU (146 kW) per hour
  • Fuel Flow Rate: 3.6 gallons/hour (13.6 liters/hour)
  • Water Output Temp: 230º F (110º C)
  • Capacity: 52 gallons (200 liters)
  • Exhaust flue diameter: 10”
  • Dimensions: 45”H x 32”W x 68”D
  • Weight: 1160 lbs.
  • Tank sold separately

Our Technology



In waste oil heating, nothing is more important than generating the hottest, cleanest-burning flame. That’s why EnergyLogic only uses the best burner in our waste oil burners. Our American-made Beckett chassis delivers near complete combustion, resulting in the highest heat output and the least ash accumulation.


CLEAN LESS.

Our superior flame incinerates more impurities that cause ash, resulting in the longest cleaning interval in the industry.

ON-BOARD AIR COMPRESSOR.

Shop air is for work, not heat. Our burner’s pre-installed air-compressor is small, quiet and delivers perfect airflow for waste oil heating.

BURN MORE FUELS.

Use the widest range of used and waste oils—No.2 to 90W, including synthetics—with no manual adjustments.

MADE IN THE USA

Our burner is produced in Ohio by Beckett, a family-owned and run manufacturer recognized as the leader in fuel combustion technology since 1937.

DOUBLE THE HEAT RISE

Our Beckett burner flame is 1,500+ degrees, with heat output 120 degrees above room temp--double the competitions’.
